General purpose I/O demo tools
This small board displays the state of 16 of the GPIO pins of the Raspberry PI.
It also features 4 push buttons to demonstrate 4 pins configured as inputs.
It plugs directly on the 40-pin header of the Raspberry Pi.

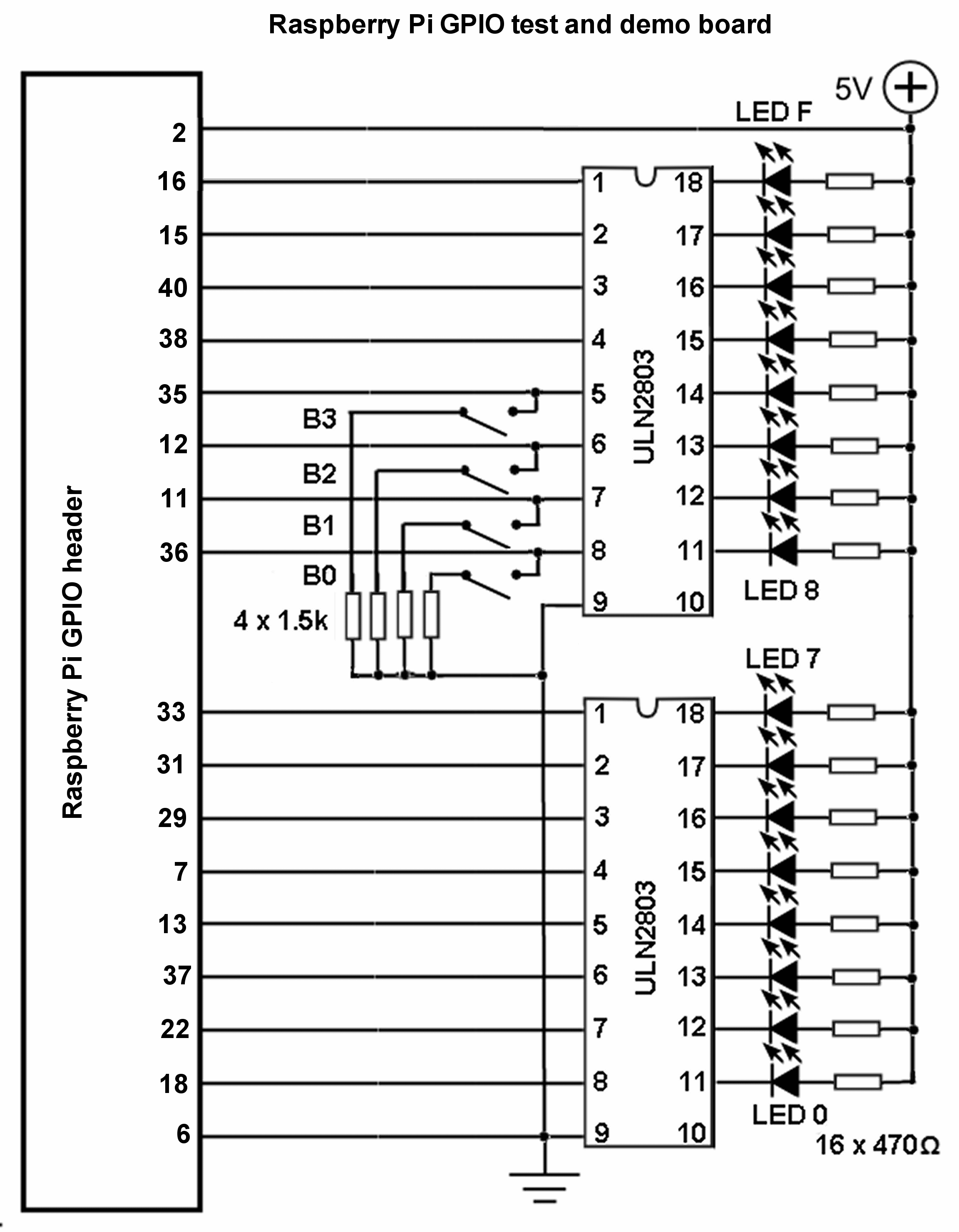

Circuit diagram
Small low level demo program written in C. To use it :
- create a dedicated directory on the Raspberry Pi, for example rpitest - copy to this directory the following files : rpitest.c, bcm2835.c, bcm2835.h, Makefile - change to the new directory and enter the following commands : make
sudo ./rpitest |
